Ball Bearings: Varieties, Design and Applications

1. Ⅰ.The Concept of Ball Bearings

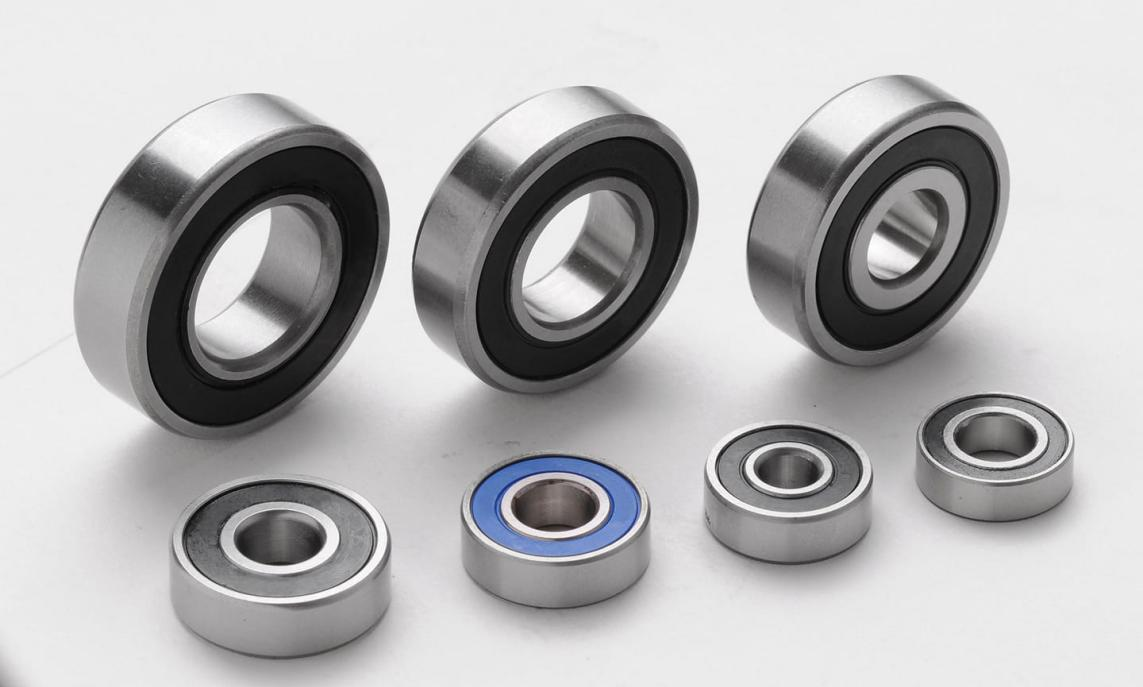

Ball bearings are sophisticated rolling-element bearings meticulously engineered to use rolling elements (usually steel balls) to roll between the inner and outer rings, thereby reducing friction and enabling the transmission of rotational or linear motion. These ingenious devices employ two distinct rings or "races" to minimize surface contact and reduce friction between dynamic elements. The rolling action of the balls significantly diminishes the coefficient of friction in comparison to flat surfaces that slide against one another.



Design of Ball Bearings

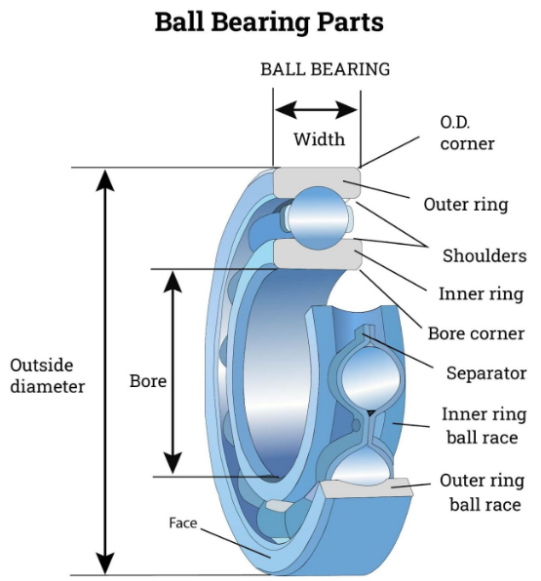

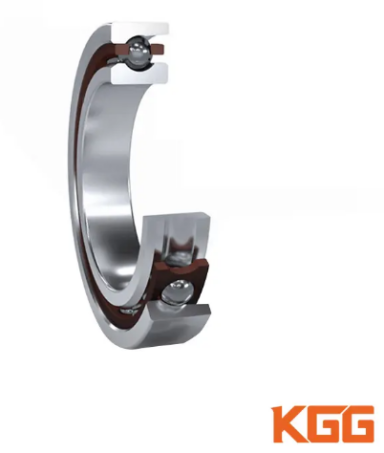

The architecture of ball bearings comprises four fundamental components: two races (rings), the balls (rolling elements), and a retainer (which keeps the balls apart). Angular contact bearings and radial ball bearings feature an inner ring and an outer ring specifically designed to accommodate radial loads applied perpendicularly to the axis of rotation.

The stationary outer race is securely housed to effectively transfer radial loads. Conversely, the inner race is affixed to the rotating shaft, providing both support and guidance for its movement. The rolling elements play a pivotal role in bearing load distribution across their respective raceways.

These elements rotate at varying speeds relative to that of the inner race while orbiting around it. The separator functions as a buffer mechanism that prevents collisions among the balls by maintaining their spacing. Positioned strategically between them, it ensures non-contact interaction. Thrust bearings are uniquely crafted to bear axial loads—those parallel to the rotation axis—comprising two equally sized rings.

Materials Utilized in Ball Bearings

 The materials employed in fabricating balls for rolling bearings exhibit considerable variation; they are primarily selected based on compatibility with those used for constructing rings—a factor critical for ensuring optimal performance under conditions involving thermal expansion or contraction.

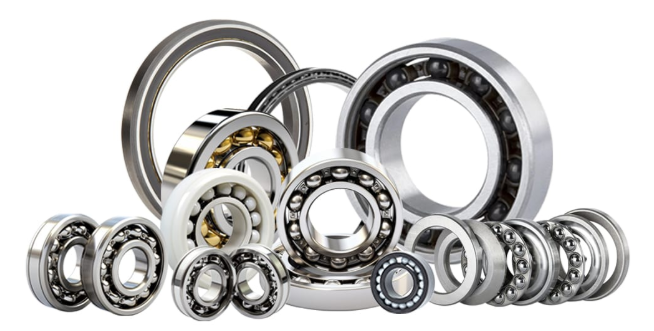

Ⅱ.Different Types of Ball Bearings

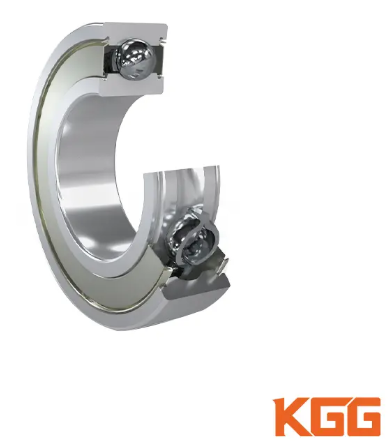

Deep Groove Ball Bearing

 Deep groove ball bearings represent the most ubiquitous category of rolling-element bearings within contemporary industry. Distinguished by their deep symmetrical raceway grooves and close conformity between balls and races, these bearings are inherently designed for high-speed operations while effectively supporting moderate-to-heavy radial loads alongside limited axial (thrust) loads in either direction. Their remarkable versatility coupled with low friction characteristics makes them the preferred choice across a myriad of applications including electric motors, household appliances, automotive wheels, fans, and industrial automation systems.
