Stepper motors are captivating components that play an indispensable role in a myriad of contemporary technologies. Whether you are experimenting with a 3D printer or engineering sophisticated industrial automation systems, grasping the nuances of stepper motors can profoundly elevate your projects. Let’s embark on an exploration into the realm of stepper motors and delve into their complexities, compositions, applications, and more.
Ⅰ.The concept of stepper motors

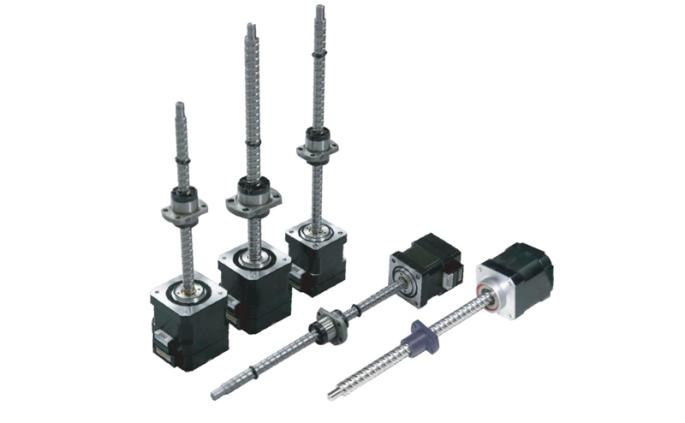

A linear stepper motor is an electric motor that transforms electrical pulse signals into linear motion. Unlike conventional motors that spin continuously, it converts rotational movement into linear displacement through the interaction of pulsed electromagnetic fields generated by the magnetic rotor core and stator. Linear stepper motors possess the remarkable capability to execute direct linear motion or reciprocating movements without necessitating external mechanical linkages, thereby streamlining design processes and enhancing motion accuracy.
Ⅱ.Stepper Motor Components

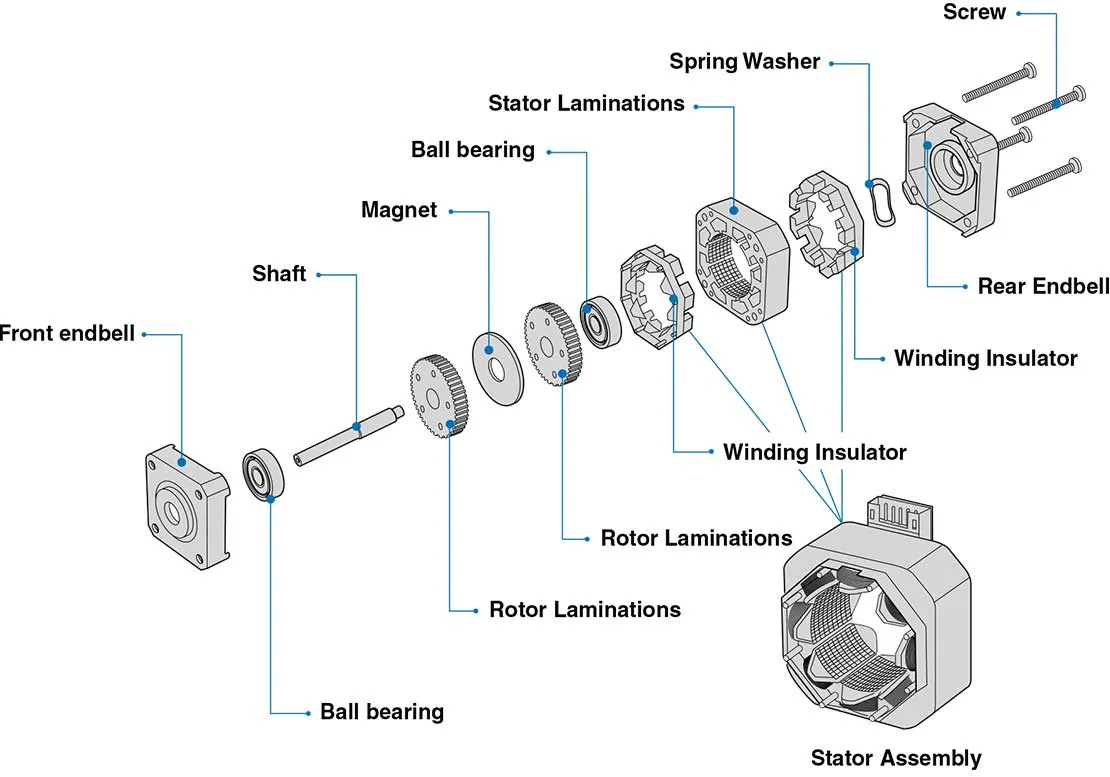

The fundamental components of a stepper motor encompass the rotor (the moving element), the stator (the stationary part with coils), and the driver (which controls the pulse sequence). Collectively, these elements empower the motor to execute movements with exceptional precision.
Ⅲ.Significance of Stepper Motors in Modern Technology
Stepper motors have become ubiquitous in today’s tech-driven landscape. From 3D printers and CNC machines to robotic arms and medical applications, their capacity for delivering precise control renders them essential across various domains. The reliability and accuracy inherent in these devices have revolutionized how machines and gadgets operate, fostering innovations across diverse fields.
IV. Stepper Motor Operational Principle

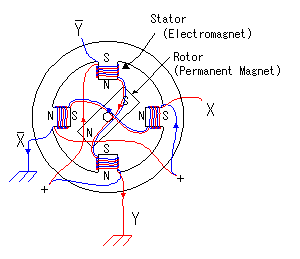

Stepper motors operate on the principle of electromagnetism. When electrical pulses are applied to the motor windings, they create magnetic fields that interact with the rotor, causing it to move in steps. The direction, speed, and position can be precisely controlled by adjusting the pulse sequence.
V. Applications of Stepper Motors
Industrial Automation
Stepper motors play a pivotal role in the realm of industrial automation systems. They are used in conveyor belts, robotic arms, and automated manufacturing processes where precise control is essential.
3D Printers
In 3D printing, stepper motors control the movement of both the print head and build platform. Their precision ensures high-quality prints with intricate details.
CNC Machines
Computer Numerical Control (CNC) machines use stepper motors to govern the motion of cutting tools. This level of precision facilitates elaborate designs and ensures consistent production quality.
Robotics
Robots depend on stepper motors for exact movements and precise positioning. From rudimentary robotic arms to sophisticated humanoid robots, these motors empower accurate and repeatable actions.
VI. Future Trends in Stepper Motor Technology
Advancements in Micro-stepping
The technology surrounding micro-stepping is continually evolving, yielding even greater resolution and smoother motion dynamics. This trend is likely to continue, further enhancing the precision capabilities of stepper motors
Integration with IoT
The Internet of Things (IoT) is revolutionizing numerous technologies, including stepper motor applications. The integration with IoT can facilitate remote monitoring and control, thereby enhancing their functionality across diverse applications.
Energy Efficiency Improvements
As sustainability gains prominence, there is a concerted effort to design stepper motors that are increasingly energy-efficient. Innovations in materials and drive technologies are instrumental in curtailing power consumption.
VII. Conclusion
Stepper motors stand as extraordinary devices that embody precision, reliability, and versatility. A comprehensive understanding of their types, operational principles, and myriad applications can empower you to maximize their potential within your projects. Whether you're into robotics, 3D printing or industrial automation—stepper motors undoubtedly have much to offer.
