Application and Maintenance of Ball Screws in Robotics and Automation Systems.

Application and Maintenance of Ball Screws in Robotics and Automation Systems

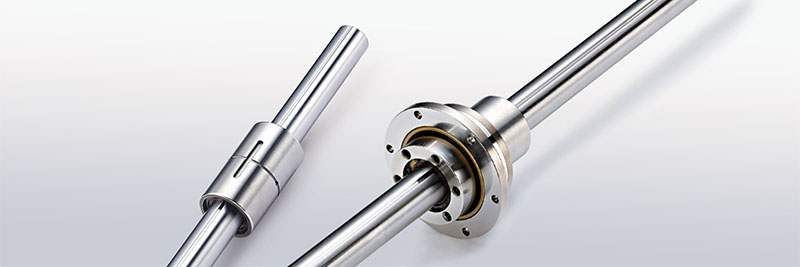

Automation Systems1

Ball screws are ideal transmission elements that meet the requirements of high precision, high speed, high load capacity and long life, and are widely used in robots and automation systems.

I. Working Principle and Advantages of Ball Screws

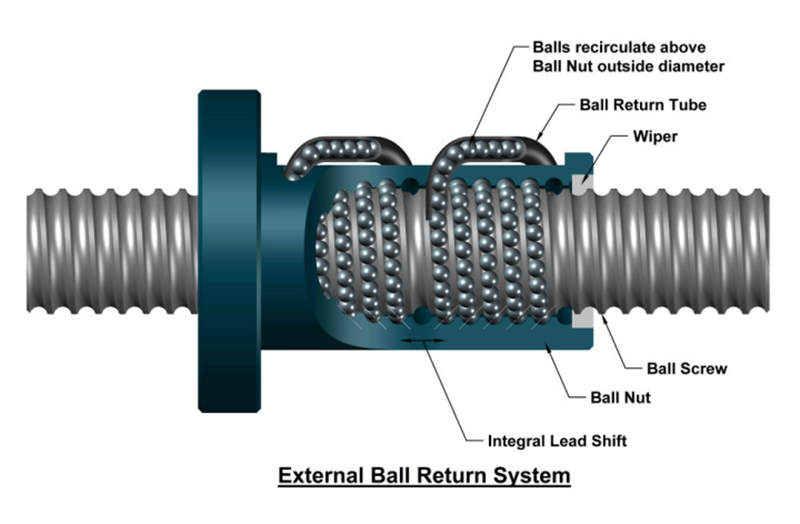

Automation Systems2Ball screw is a transmission element of rotation and linear motion, which consists of ball, screw, nut, housing and other parts. When the screw rotates, the ball rolls between the nut and the screw, thus converting the rotary motion into linear motion.The advantages of ball screws can be summarized as follows:

(1) High Precision: Ball screws are manufactured with high precision, which can meet the requirements of robots and automation systems for precision and improve the efficiency and quality of robots and automation systems.

(2) High Speed: Ball screws have compact structure, low friction and smooth rotation, which can achieve high speed rotation and linear motion.

(3) High Load Capacity: Ball screw has compact structure, high strength and large load capacity, which can bear large load and improve the work load capacity of robots and automation systems.

The manufacturing material and process of the screw are high precision, with good surface finish, strong anti-wear performance and long service life, which can reduce the maintenance cost and downtime of the robot and automation system.

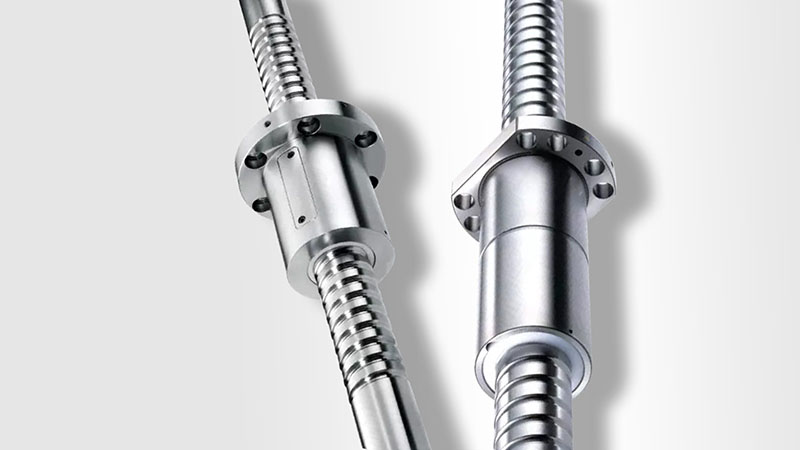

Automation Systems3II. How to Select and Use Ball Screw

In robotics and automation systems, it is very important to choose the right ball screw. How to select and use ball screw? The following aspects need to be noted:

1.Load Capacity: The load capacity of ball screw is calculated based on its parameters such as diameter, pitch and ball diameter. When selecting ball screws, it is necessary to choose the appropriate specifications and models according to the load requirements of robots and automation systems.

2.Accuracy Level: The accuracy level of ball screws is determined according to their manufacturing accuracy and usage accuracy requirements. When selecting ball screws, it is necessary to choose the appropriate precision level according to the precision requirements of robots and automation systems.

3.Working Environment: The working environment of robots and automation systems can sometimes be harsh, so it is necessary to choose ball screws with special materials and coatings such as corrosion resistance, high temperature resistance, dust proof and waterproof.

4.Installation and Use: When installing and using ball screws, it is necessary to pay attention to their lubrication and maintenance to ensure their smooth working and long life.

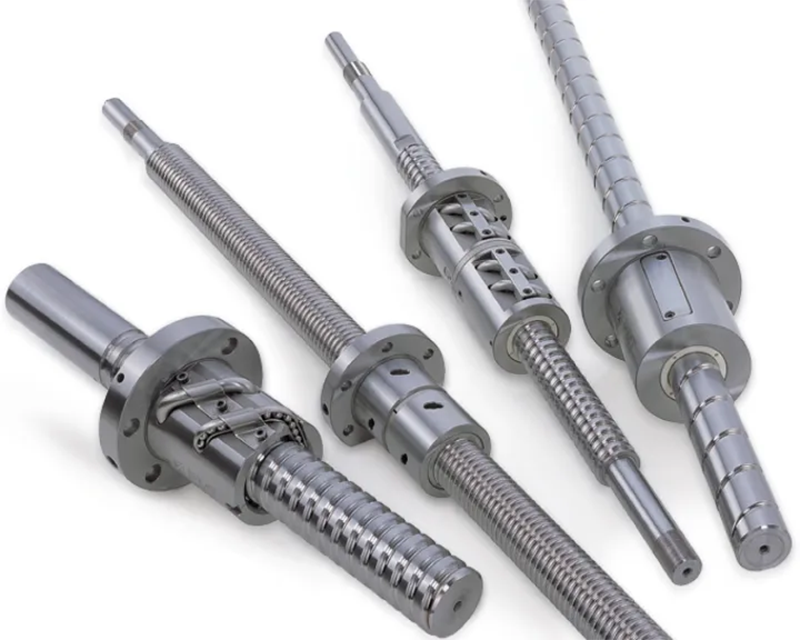

Automation Systems4III. Maintenance and Repair of Ball Screw

The maintenance of ball screws is very important for the normal operation of robots and automation systems. The following are the considerations for the maintenance of ball screws:

1.Regular Cleaning and Lubrication: Ball screws in robots and automation systems need regular cleaning and lubrication to ensure their good working condition. When cleaning and lubricating, appropriate cleaning agents and lubricants should be selected according to the usage.

2. Check the Working Condition: The working condition of the ball screws should be checked regularly, including the indicators of smoothness of movement, wear degree and noise. If abnormal condition is found, it should be dealt with in time.

3.Prevent Impact and Vibration: During the operation of the robot and automation system, attention should be paid to avoid the ball screw from impact and vibration to prevent it from being damaged and affecting its working life.

4.Replacement of Worn Parts: The worn parts of ball screws mainly include balls and guides, and when these parts are badly worn, they need to be replaced in time. When replacing, attention should be paid to choosing the same or better parts as the original parts to ensure its normal operation.5、Storage and protection: Ball screws of robots and automation systems need to be properly stored and protected to avoid damage and corrosion during shutdown or transportation.
