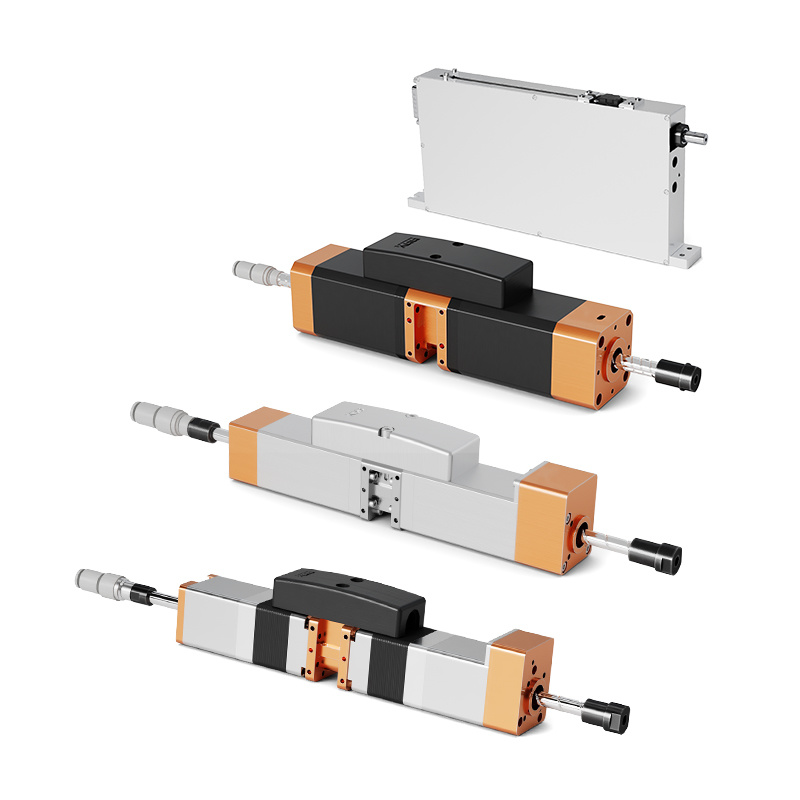

With the rapid development of industrial automation, linear actuators are core precision transmission components widely used in semiconductor, 3C electronics, medical equipment, LED and lithium-battery industries. A high-performance linear actuator improves equipment accuracy and stability, and directly raises production efficiency and yield.
1. Accuracy and Repeat Positioning Accuracy
For high-precision scenarios such as semiconductors and optical inspection, accuracy is the top priority.
-KGG ZRCS voice-coil ZR-axis actuator achieves ±2 μm positional repeat positioning accuracy, meeting ultra-precision demands for wafer angle adjustment and lens assembly.
-KGG ZR series offers ±0.01° rotational positioning accuracy with 17-bit high-resolution encoders for precise angle control in mounting and angle correction.
Selection tip: Reserve over 30 % accuracy margin against actual process tolerances.
2. Load Capacity and Thrust
Evaluate maximum thrust, continuous thrust and rated load. - Maximum thrust: short-term peak output for acceleration and friction overcoming. - Continuous thrust: stable long-term output; keep operating load within this range for continuous production lines to avoid overheating and premature wear.
KGG ZR-axis covers multiple grades:
-Micro light-load (ZRCS13 / ZRIN28): 5-12.8 N, for micro-part handling and precision dispensing
-Medium-load standard (ZRCS25 / ZRIS42): 25-36.5 N, for LED handling and labeling
-Heavy-load industrial (ZRFS60): 400 N continuous thrust, for press-fit and inspection
Selection tip: Apply a 1.5-2 safety factor to calculated thrust; avoid heavy offset load which accelerates guide wear.
3. Speed and Response
Maximum linear speed, maximum rotational speed and acceleration response determine equipment cycle time.
-ZRFS60 servo: max. linear speed 800 mm/s
-ZRCS voice-coil: max. rotation speed 1500 RPM, excellent for high-frequency reciprocating motion
-ZRIN stepper: max. 400 mm/s, cost-effective for medium-low-speed applications
Selection tip: Nominal speed is no-load value; actual speed drops under load. Account for acceleration-deceleration time in cycle-time calculation.
4. Structural Design and Footprint
KGG ZR-axis adopts hollow-motor direct-drive highly-integrated construction: - Ultra-compact dimensions (ZRCS13: 13 mm width; ZRIN28: 28 mm width) for space-limited multi-axis layouts - Zero axial backlash, low noise, smooth movement - Integrates linear motion, rotary motion and hollow vacuum adsorption. One unit replaces multiple separate axes, saving mechanical design and assembly costs.
Selection tip: Integrated units have higher unit price but lower total-of-ownership cost for compact machine designs.
5. Drive and Control Mode
-ZRCS Voice-coil drive: ultra-fast response, high force-control accuracy. Ideal for precision press-fit, force-controlled testing and high-frequency reciprocation.
-ZRIS / ZRES / ZRFS Servo drive: high-speed, high-load closed-loop performance for heavy-duty high-precision positioning and handling.
-ZRIN Stepper drive: economical, simple integration for cost-sensitive medium-low-speed projects.
Control interfaces support pulse and EtherCAT bus. EtherCAT is recommended for multi-axis synchronization.
Selection tip: Force-control → voice-coil; heavy-duty high-accuracy → servo; cost-sensitive → stepper.
6. Industry-Specific and Custom Requirements
-Semiconductor: ultra-high accuracy, clean-room compatibility (ZRCS for wafer and chip handling)
-3C Electronics: miniaturization & high-speed multi-axis pick-and-place
-Medical & Inspection: precise force-control and smooth operation
-LED & Optoelectronics: hollow shaft, vacuum adsorption for sorting and handling
-Dispensing: hollow-shaft multi-channel adhesive/reagent dispensing
7.KGG provides custom solutions for special travel, accuracy and interface requirements.
Selection tip: Confirm clean-room grade, vacuum adsorption, force-control and other special demands at the selection stage to prevent expensive later-stage modification.
