KGX High Rigidity Linear Actuator

This series is screw driven, small, lightweight and high rigidity features. This stage contains a motor-driven ballscrew module equipped with a stainless steel cover strip to prevent particles from entering or exiting.

Send email to us

Product Detail

Product Tags

KGX High Rigidity Linear Actuator Details

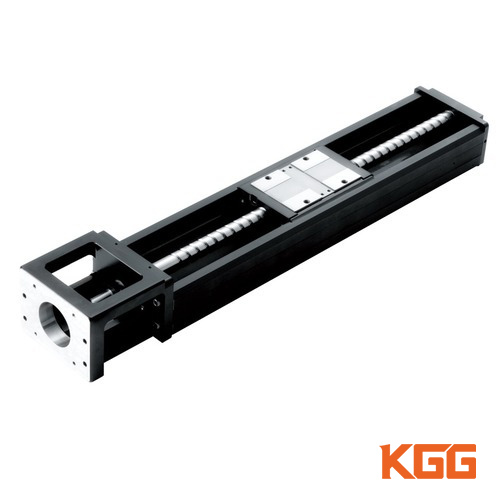

KGG Miniature Electric Actuators High Quality KK Single Axis Robot Ball Screw Actuator in stock China Linear Actuator Manufacturers Suppliers KGX40

KGX series has 6 types, all of them are screw drive with high rigidity and high speed.

KK Series industrial stage modularizes both ballscrew and guideway to achieve better performance on accuracy, stiffness, raipd installation, and space saving. With the block of KK driven by balls crew and sliding on the optimized U-rail, greater stiffness and high accuracy are therefore performed.

Features:

Easy for system design, installation and maintenance

Compact and lightweight

High accuracy and high stiffness

Well equipped with required accessories

Design Optimization*

* high stiffness + lightweight structure

Pic
Model	KGX40 Series	KGX50 Series	KGX60 Series	KGX86 Series	KGX100 Series	KGX130 Series
Width mm	40mm	50mm	60mm	86mm	100mm	130mm
Maximum Stroke mm	200mm	300mm	600mm	940mm	1380mm	1680mm
Maximum Payload kg	73kg	231kg	374kg	714kg	704kg	789kg
Maximum speed	190mm/s	270mm/s	1100mm/s	1480mm/s	1120mm/s	1120mm/s
PDF Download	*	*	*	*	*	*
2D/3D CAD	*	*	*	*	*	*
